? Thread Type: G ( PF ) and NPT.

? Material Data : Standard in Stainless Steel A2 ( DIN 1.4305 / AISI 303 ) for A.C.F parts  ;  Contact us for ordering Stainless Steel A4 ( 1.4404 / AISI 316L ).

Special heat resistance polyamide for E part ; Special heat & weather resistance rubbers for B.D parts.

? IP Protection :IP68 - 5 bar.

? Working Temp :- 40 °C to 150 °C ( - 40 °F to 302 °F )  ;  intermittent to approx. 180 °C ( 356 °F ).

? Application :With the higher requirements for stability & severe temperature resista ce under tough conditions, the higher strength & rustproof stainless steel with the special heat & cold resistant sealing rubber { well known for  ts excellent - 50 °C ( - 58 °F ) to 200 °C ( 392 °F ) working temperature range } are adopted for building this tough cable gland to offering the best durability in severe weather, flame, chemical and high impact environments. In addition, the gland with Yongcun’s perfect clamping design provides the outstanding strain relief force & watertight performance over the entire cable range to be the unmatched long life cable entry system for outdoor / indoor applications in the specific requirements.

 Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. ( Sealing Inserts are not sold separately )

 Yongcun sealing inserts are available in split versions for mounting wires w th pre-assembled terminals or connectors. ( Minimum order quantity is required )

 For product property & chemical resistance informations, please click here for reference.

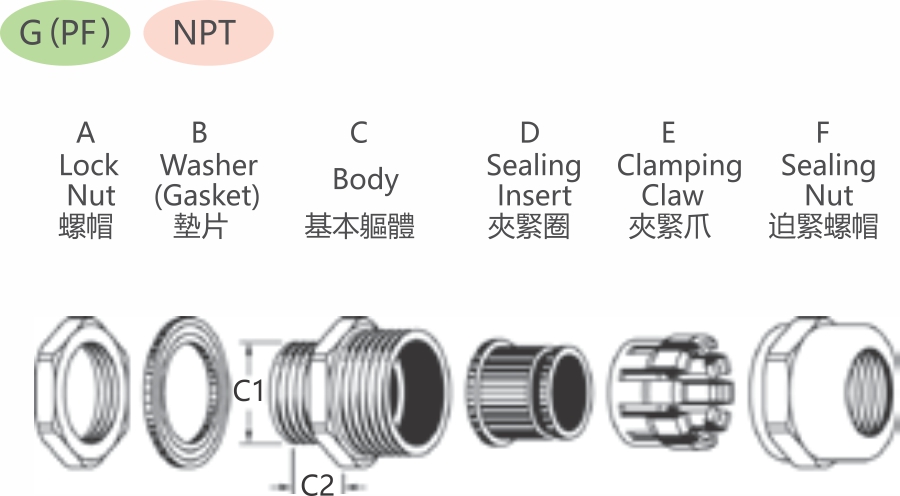

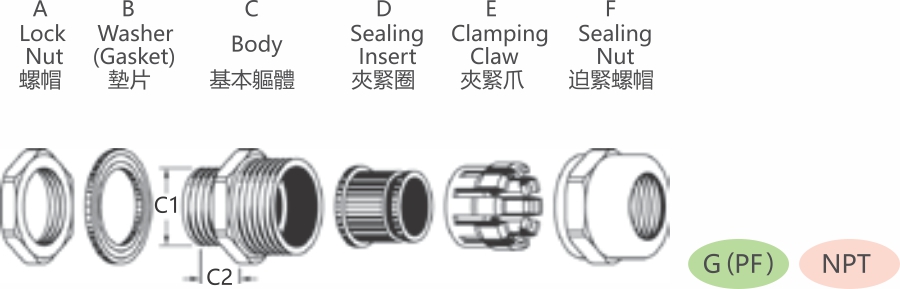

 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
