Quick-Fit Corrugated Tubing Fittings
? Thread Type :Metric and PG.? Material Data :Halogen-free Nylon PA 66 ( Flammability UL 94V-2 ) for A.C.E.F parts.Our black fittings are suitable for outdoor use have been subjected to UV light exp...
? Thread Type :Metric and PG.
? Material Data :Halogen-free Nylon PA 66 ( Flammability UL 94V-2 ) for A.C.E.F parts.
Our black fittings are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating.
UV ( Irradiance 340 nm ) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.
? IP Protection :IP54.
? Working Temp :- 40 °C to 105 °C ( - 40 °F to 221 °F ). Short-Term to 160 °C ( 320 °F ).

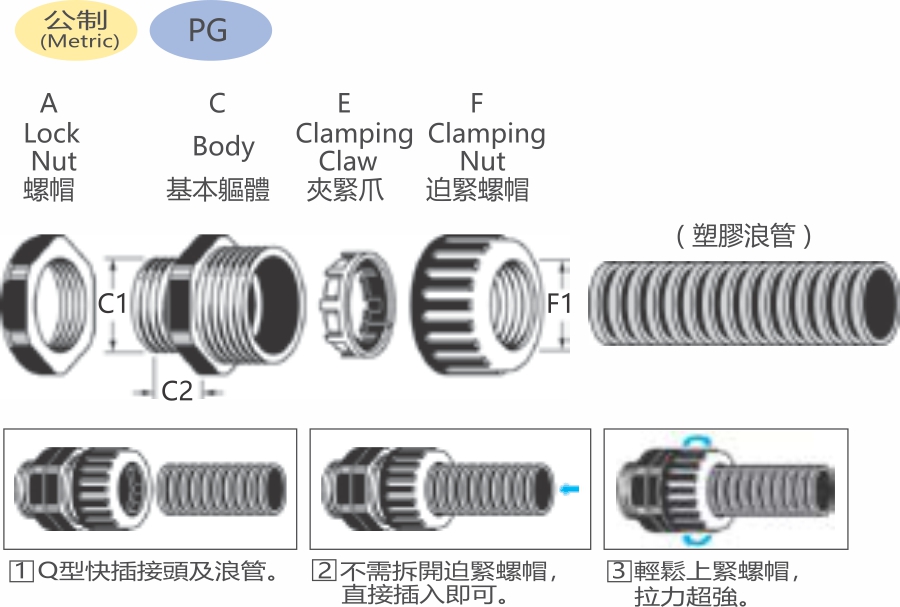

? Application :From the widest range of Yongcun polyamide tubing fittings, the quick-fit type fittings contain a very special compression design with a compression-type Nut and Clamping Claw to provide a fast & safe connection with the tubings and to get an excellent result of the pullout strength to be the best balanced performers for cable protection system. They are widely used for outdoor / indoor applications on any machines and equipments.
The Lock Nut is included in each Fitting, this saves additional ordering work and storage spaces.
