? Thread Type :Metric and PG.

? Material Data :Halogen-free Nylon PA 66 ( Flammability UL 94V-2 ) for A.C.F parts.  ( Contact us for Flammability V0 material )

Standard in weather-resistant EPDM rubbers for B.D parts.  ( NBR rubber is optional for oil-resistance applications )

Our black cable glands are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating.

UV ( Irradiance 340 nm ) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.

? IP Protection :IP68 - 5 bar.

? Working Temp. :- 40 °C to 105 °C ( - 40 °F to 221 °F ).  Short-Term to 160 °C ( 320 °F ).

? Application :Yongcun UL-certified flex protecting cable glands limit the cable bending to avoid twisted and protect the cable jacket against break at the bending point to reduce the risk of failure. With their outstanding ability in weather resistance, strain relief, watertight and airtight performances, the flex protecting cable glands are the best cable entry systems with safety features ideally used in the fields of flexible cables on hand-held equipment,moving machine parts, telecommunications, wireless networking ODUs, solar PV modules, inverters, lightings, displays, surveillance cameras,measurings, sensors and other instruments.

 Contact us for designing & ordering different sealing hole patterns with varying diameters. ( Sealing Inserts are not sold separately )

 Yongcun sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. ( Minimum order quantity is required )

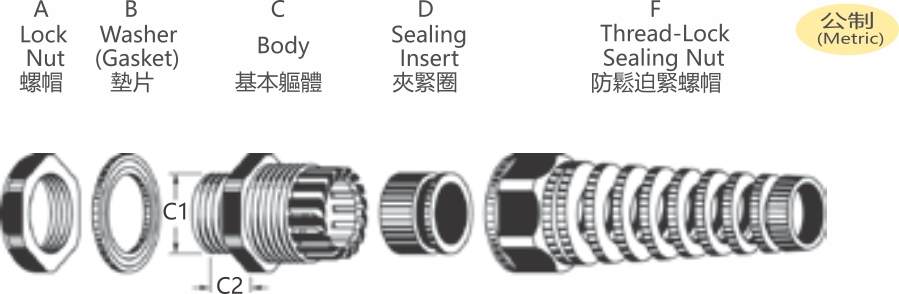

 The Washer ( Gasket ) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
